Aerospace engine coating removal presents unique challenges that conventional methods struggle to address. Components such as combustion chambers, turbine blades, and compressor sections feature complex multi-layer coating systems—sometimes four or more distinct layers—that must be removed without compromising the underlying substrate. Traditional approaches including chemical stripping, laser ablation, and abrasive blasting frequently cause thermal damage, surface degradation, or environmental compliance issues.
Ultra-high pressure waterjet coating removal technology offers a controlled, thermally neutral alternative that enables precise material removal across diverse aerospace coating systems. This article examines the technical parameters, application scenarios, and performance characteristics of automated waterjet-based coating stripping for aerospace engine components.
Thermal barrier coatings protect high-temperature sections of turbine engines, particularly combustor liners, high-pressure turbine (HPT) blades, and low-pressure turbine (LPT) airfoils. These coatings typically consist of a metallic bond coat (commonly MCrAlY variants or nickel-aluminum alloys) applied via vacuum arc deposition or high-velocity oxygen fuel (HVOF) processes, topped with a ceramic top coat—typically yttria-stabilized zirconia (YSZ)—deposited through electron beam physical vapor deposition (EB-PVD) or atmospheric plasma spray (APS).
Compressor sections employ abrasion-resistant coatings (nickel-chromium-aluminum-yttrium-silicon base layers with alumina or other ceramic top coats) to protect blade tips and casing interfaces. Seal coatings, including carbon-based seal coats (CBC) and abradable seal coats (RBC), use nickel-aluminum-tungsten bond coats with aluminum nitride-boron top layers to maintain clearance control between rotating and stationary components.
Fan case sections and inlet components frequently feature specialized coatings that prevent ice accumulation, requiring removal methods that preserve the underlying aerodynamic surfaces.
The primary difficulty lies in managing selective versus complete coating removal:
Selective removal: Removing the ceramic top coat while preserving the metallic bond coat intact. This approach applies when the bond coat remains serviceable and only the thermal barrier layer requires renewal.
Complete removal: Stripping all coating layers without penetrating or altering the base metal substrate. This applies during major overhauls or when coating delamination has compromised adhesion.
Both scenarios demand micron-level control over material removal depth—a specification that chemical and thermal methods cannot reliably achieve. The complexity increases further when considering that aerospace coatings often vary in thickness across different regions of the same component, with thicker deposits at leading edges and trailing edges compared to mid-chord sections.
Understanding the specific coating architecture for each engine section enables optimized removal parameter development:

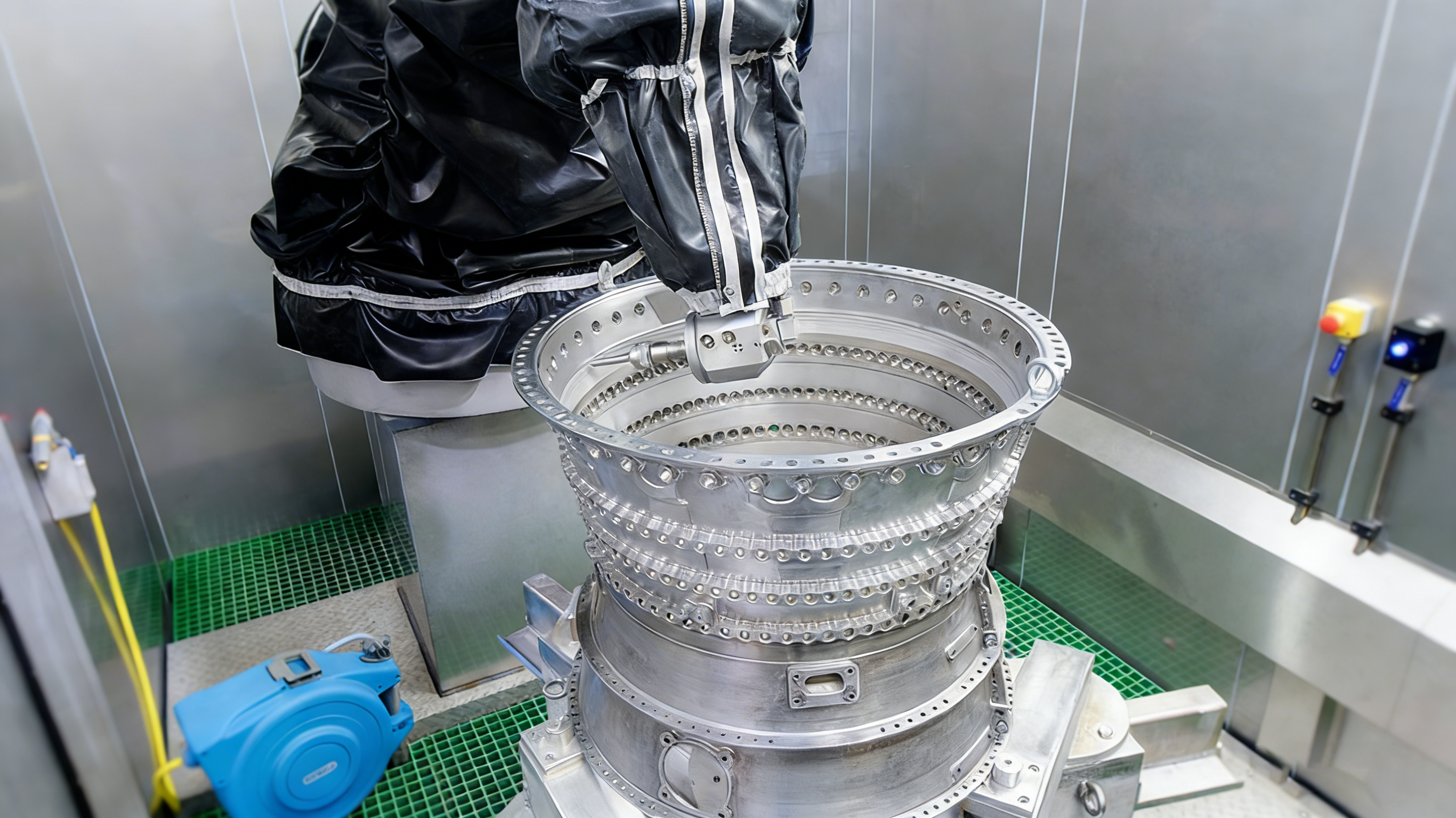

Combustor Liners: These components typically receive thermal barrier coatings on the hot gas path surfaces, with thickness ranging from 150-300 μm for the ceramic layer. Combustor dome sections may feature additional oxidation-resistant bond coats due to extreme temperature exposure.

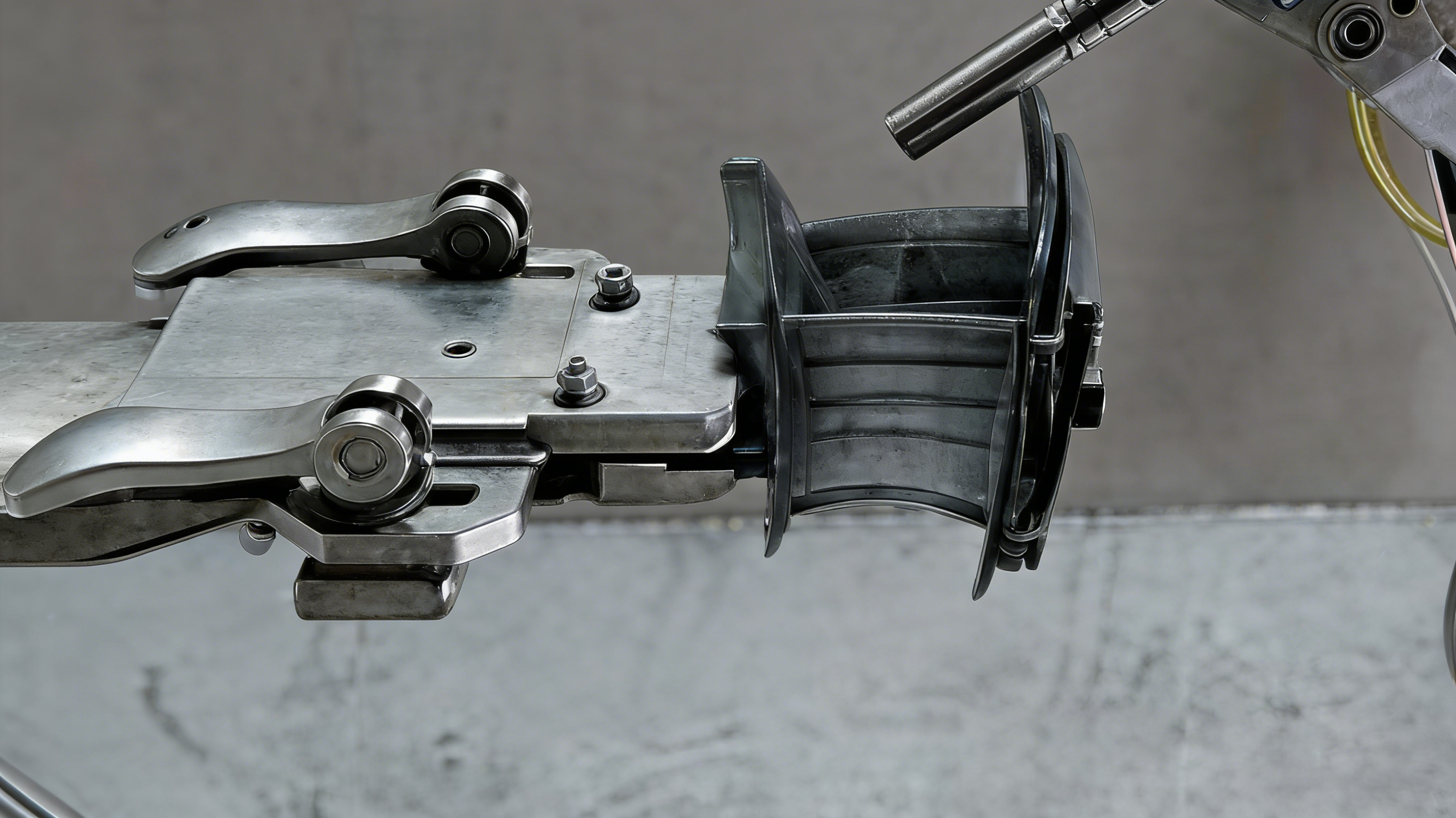

Turbine Blades and Vanes: HPT and LPT airfoils receive the most sophisticated coating systems, often combining multiple functional layers. The ceramic top coat thickness on turbine blades typically ranges from 100-250 μm, deposited via EB-PVD to achieve columnar microstructure for thermal compliance.
Compressor Sections: While operating at lower temperatures than turbine sections, compressor blades require abrasion-resistant coatings to withstand particle ingestion and blade-casing contact. Seal ring components feature abradable coatings designed to wear preferentially during operation, maintaining clearance control.
Waterjet coating removal systems operate at pressures ranging from 60,000 to 90,000 PSI (413 to 621 MPa), with typical flow rates of 3-8 gallons per minute depending on nozzle configuration and target material thickness. The high-pressure water stream, often mixed with abrasive garnet media (80-120 mesh for aerospace applications), achieves sufficient kinetic energy to fracture and dislodge ceramic and metallic coating materials without inducing the heat-affected zones associated with laser processing.
Precision coating removal requires specialized multi-axis positioning systems capable of maintaining consistent standoff distance (typically 0.5-2.0 mm from the component surface) while following complex curvilinear geometries. Nozzle assemblies for aerospace applications feature:
Orifice diameters of 0.004-0.012 inches (0.10-0.30 mm)
Mixing tube lengths calibrated to abrasive feed rate and target coating hardness
Real-time pressure feedback loops for dynamic adjustment

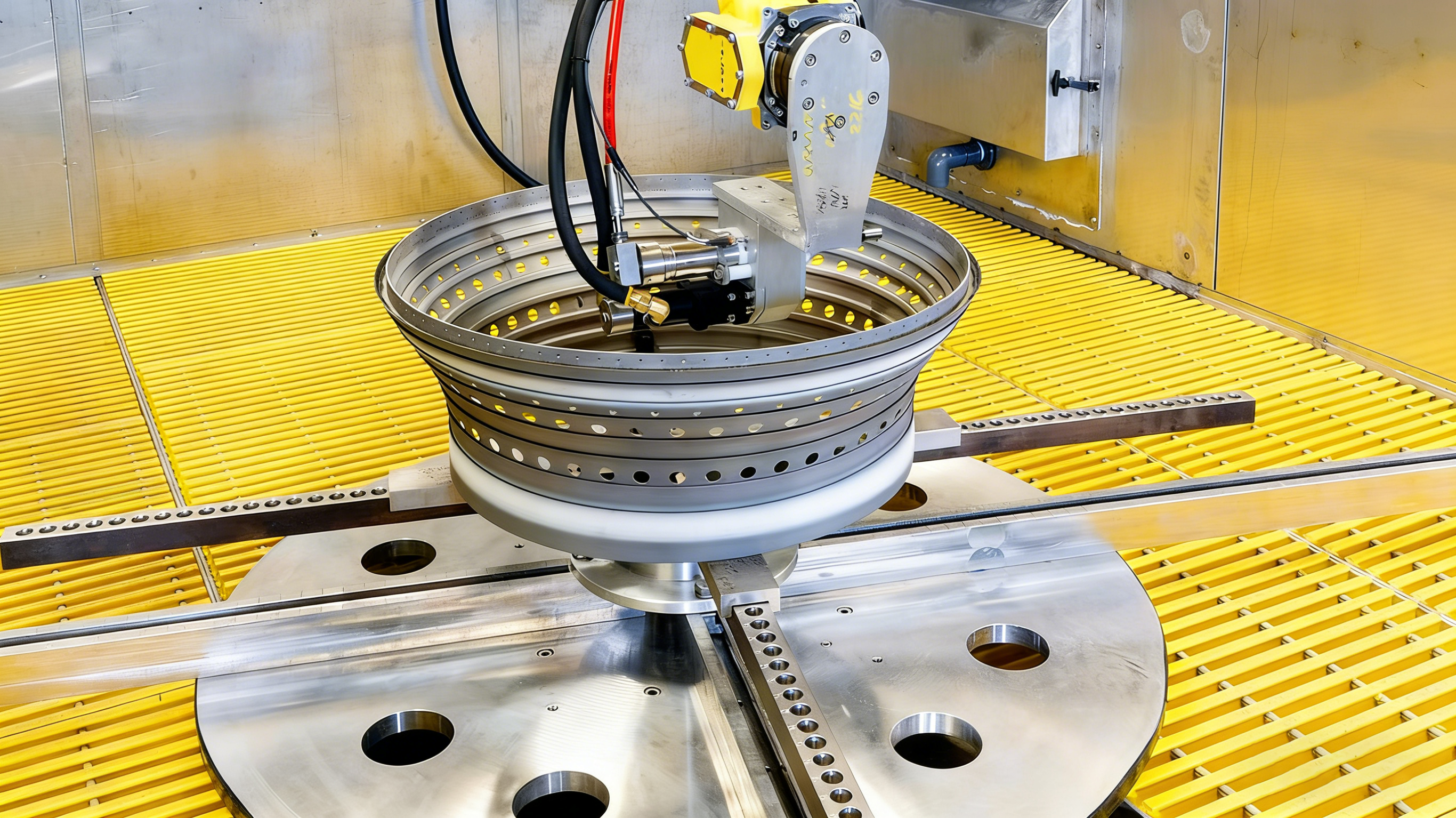

Modern aerospace waterjet coating removal systems employ CNC-controlled gantry or articulated arm configurations. For coating removal from cylindrical turbine blades and annular combustor components, rotary indexing tables combined with linear axes enable continuous path coverage across complex geometries without manual repositioning.
Coating System:
Bond coat: NiCrAlYSi (vacuum arc deposition)
Top coat: Yttria-stabilized zirconia (EB-PVD)
Removal Objective: Selective removal of ceramic top coat, preserving bond coat integrity
Technical Parameters:
Pressure: 75,000 PSI
Abrasive: 80-mesh garnet, feed rate 0.4 lb/min
Traverse speed: 15-25 mm/sec
Standoff distance: 1.2 mm
Result: Complete ceramic layer removal in 3 passes; bond coat surface roughness (Ra) remained within 0.8-1.2 μm specification, eliminating the need for bond coat re-machining.
Coating System:
Bond coat: NiAl (plasma spray)
Top coat: Alumina (plasma spray)
Removal Objective: Complete coating removal to bare substrate
Technical Parameters:
Pressure: 65,000 PSI
Abrasive: 120-mesh garnet, feed rate 0.6 lb/min
Traverse speed: 10-18 mm/sec
Multiple passes with progressive depth control
Result: 100% coating removal achieved; substrate surface met finish requirements for re-coating without additional machining.
Coating System:
Bond coat: NiAlW (plasma spray)
Top coat: AlN-B (plasma spray)
Removal Objective: Complete removal without substrate penetration
Technical Parameters:
Pressure: 55,000 PSI
Pure water (no abrasive) for initial penetration
Abrasive-assisted passes for residual material clearance
Eddy current monitoring for end-point detection
Result: Successful removal of both layers; no measurable substrate damage detected via dye penetrant inspection.
| Parameter | Waterjet | Laser Ablation | Chemical Strip | Abrasive Blast |
|---|---|---|---|---|
| Heat Input | None | High (localized) | None | Minimal |
| Substrate Damage Risk | Very Low | Moderate-High | Low | Moderate-High |
| Environmental Impact | Water + garnet | Minimal | Chemical waste | Media disposal |
| Selectivity Control | Excellent | Good | Poor | Poor |
| Geometry Limitations | Minimal | Good | Good | Limited |
| Processing Speed | Moderate | Slow | Slow | Fast |
| Repeatability | High | Moderate | Variable | Variable |
Chemical stripping methods present significant environmental and safety compliance challenges due to hexavalent chromium and other hazardous compounds found in aerospace coating systems. Laser systems, while offering good precision, generate heat that can alter substrate microstructure in nickel-base superalloys. Abrasive blasting lacks the selective removal capability required for modern multi-layer coating systems and frequently embeds abrasive particles in soft substrates.
Waterjet systems achieve material removal accuracy within ±0.05 mm, enabling selective layer removal without penetrating underlying bond coats or substrates. This capability is essential for maintaining serviceable bond coats during TBC renewal operations.
The waterjet process generates no significant heat input to the component substrate. This characteristic preserves the mechanical properties and microstructure of precipitation-hardened nickel-base superalloys used in turbine blade and combustor applications.
The process uses only water and natural garnet abrasive, producing no hazardous chemical byproducts. Spent garnet and removed coating material can be collected, filtered, and properly disposed of as non-hazardous solid waste.
Modern coating removal systems integrate with existing MRO workflow management systems, enabling:
Automated path generation from CAD models
Real-time process monitoring and documentation
Integration with non-destructive testing (NDT) systems for end-point detection
Aerospace coating removal operations must comply with relevant industry specifications. Key standards include:
AMS 7001: Aerospace surface treatment requirements for turbine engine components
ASTM F1361: Standard specification for inspection of aircraft wings and control surfaces
SAE AIR 5096: Guidelines for coating removal from aerospace hardware
NADCAP AC7101: Special processes for coating removal in aerospace manufacturing
Fedjetting Waterjet systems are designed and validated to meet these specifications, with documented process parameters and quality assurance protocols suitable for Nadcap audit requirements.
How does waterjet coating removal compare to laser stripping for TBC removal?
Waterjet coating removal offers superior thermal neutrality—laser systems can generate temperatures exceeding 1,000°C locally, potentially altering the microstructure of nickel-base superalloy substrates. Waterjet operates at ambient temperature, eliminating heat-affected zones. Additionally, waterjet systems typically achieve faster cycle times for components with large surface areas.
Can waterjet technology handle complex geometries like turbine blade platforms and internal cooling passages?
Yes. Multi-axis CNC-controlled systems with specialized fixturing can access complex geometries including blade platforms, root fillets, and internal air passages. The process adapts to curvature variations through real-time standoff distance compensation.
What is the typical throughput for aerospace component coating removal?
Processing time varies based on component size, coating thickness, and removal objective. A typical high-pressure turbine blade with TBC coating (approximately 200 cm² surface area) requires 15-30 minutes for selective ceramic layer removal. Complete coating stripping from a combustor liner section may require 2-4 hours depending on dimensions.
How does the system detect when the bond coat is reached during selective removal?
Several methods enable end-point detection:
Eddy current testing integrated into the process head for real-time conductivity monitoring
Optical emission spectroscopy to detect substrate material in the waterjet effluent
Acoustic emission sensors to identify interface transitions between coating layers
Pre-programmed depth models validated against known coating thickness specifications
What substrate materials can be processed with waterjet coating removal?
Waterjet coating removal is effective across all aerospace substrate materials including:
Nickel-base superalloys (Inconel, Hastelloy)
Titanium alloys (Ti-6Al-4V, Ti-17)
Cobalt-base alloys
Stainless steel variants
Aluminum alloys (where applicable)
What quality assurance measures verify successful coating removal?
Quality assurance protocols for waterjet coating removal typically include:
Visual inspection under 10x magnification to verify coating clearance
Dye penetrant inspection (DPI) to detect any surface cracking or substrate damage
Eddy current testing to confirm complete removal, particularly at coating-substrate interfaces
Surface roughness measurement using contact or optical profilometry
Dimensional verification to confirm component geometry remains within tolerance
Documentation packages typically include process parameter logs, NDT results, and before/after photographic records.
What maintenance requirements apply to waterjet coating removal equipment?
Regular maintenance ensures consistent performance and repeatability:
Orifice inspection and replacement every 20-40 operating hours
Mixing tube wear monitoring with replacement intervals based on material throughput
Abrasive delivery system calibration verification
High-pressure seal inspection per manufacturer specifications
Regular verification of positioning system accuracy
Preventive maintenance schedules are established based on utilization intensity and process criticality.
How does waterjet technology handle coating variation within a single component?
Aerospace components frequently exhibit thickness variations across their geometry. Modern waterjet systems address this through:
Multi-pass programming: Sequential passes with progressively adjusted parameters
Adaptive depth control: Real-time standoff adjustment based on feedback sensors
Pre-operative mapping: Ultrasonic or eddy current thickness measurement to develop removal strategy
Process interruption points: Scheduled pauses for interim inspection and parameter refinement
This approach ensures complete removal at thick sections while preventing over-travel at thinner areas.
Take a look of how Fedjetting water jet coating removal machine working:
Selective removal capability: Ultra-high pressure waterjet technology enables precise ceramic top coat removal while preserving metallic bond coats, reducing re-work and material costs.
Substrate integrity: The thermally neutral process maintains substrate mechanical properties and microstructure, critical for fatigue-critical turbine engine components.
Environmental compliance: Water-based processing eliminates chemical waste disposal challenges associated with conventional stripping methods.
Process control: Automated CNC systems with real-time monitoring deliver consistent, repeatable results suitable for aerospace quality assurance requirements.
Versatility: The same platform configuration addresses diverse coating systems including TBC, abrasion-resistant coatings, seal coatings, and anti-icing layers across multiple engine sections.
For MRO facilities evaluating waterjet coating removal technology, several factors warrant consideration during technology selection and process development:
Waterjet coating removal systems require adequate infrastructure including:

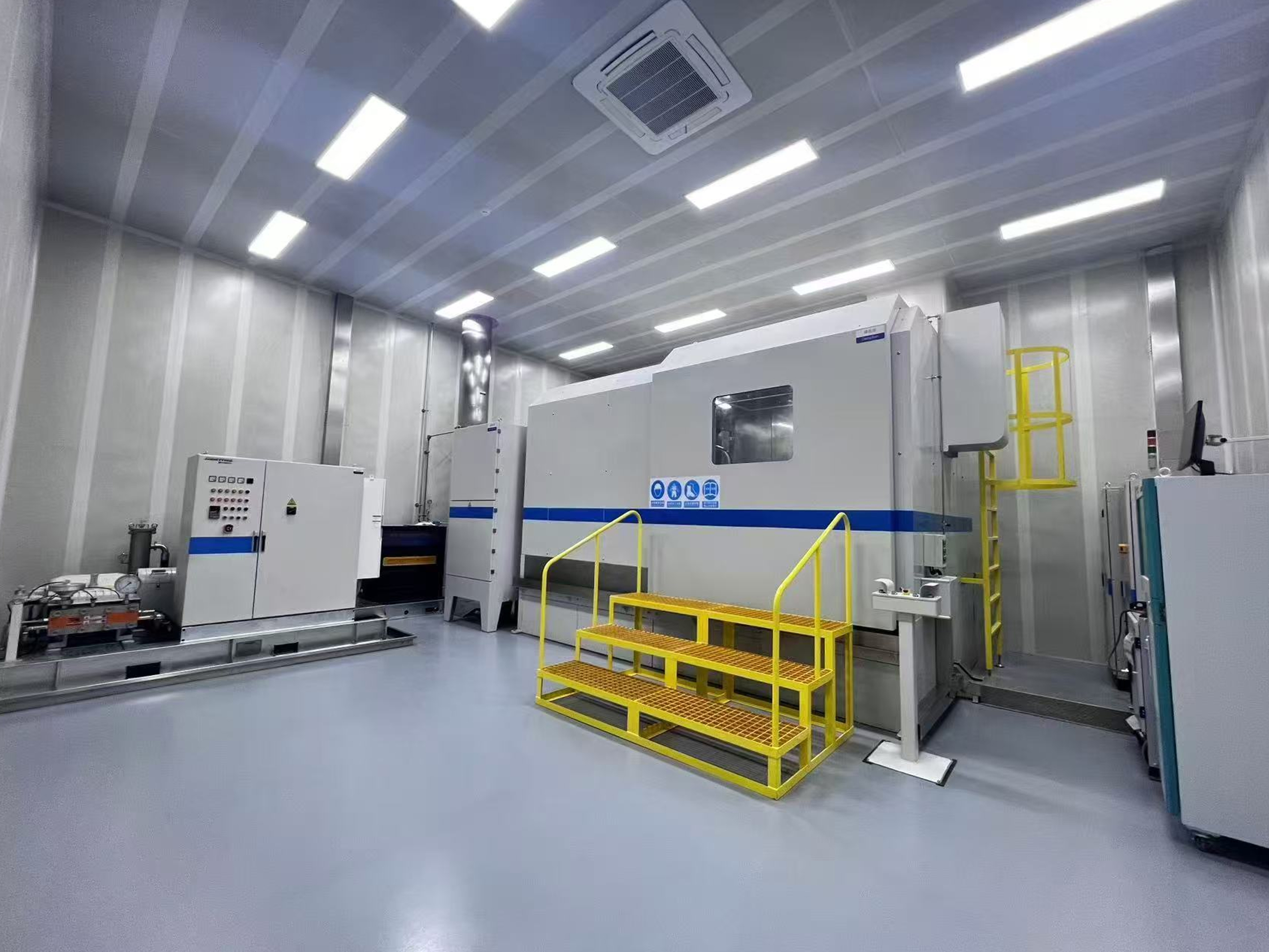

Floor space: L-type gantry configurations typically occupy 3m x 4m for standard component processing, with extended configurations for larger turbine casings
Environmental controls: Water collection and recycling systems reduce consumption; ventilation adequate for machining operations
Electrical supply: High-pressure intensifier systems require 3-phase power supply at 480V nominal for most industrial configurations
Waste management: Garnet and removed coating collection systems with settling tanks or filter presses
Initial process validation for new component types typically requires:
Coating specification review and thickness mapping (1-2 days)
Parameter development on representative samples (3-5 days)
Metallographic cross-section verification (1-2 days)
Full-scale validation on production components (3-5 days)
Documentation package preparation and approval (2-3 days)
Total process development time: 10-17 business days for standard coating systems.
Operator certification for aerospace coating removal typically includes:
High-pressure waterjet safety awareness training
Equipment operation and parameter adjustment procedures
Quality inspection techniques for coating removal verification
Documentation and process record requirements
Periodic re-certification based on facility quality system requirements
Fedjetting Waterjet provides comprehensive training programs aligned with aerospace quality management system requirements, including AS9100 and NADCAP compliance considerations.
